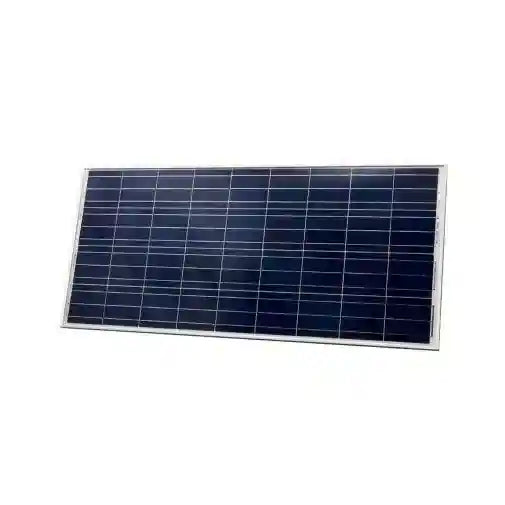

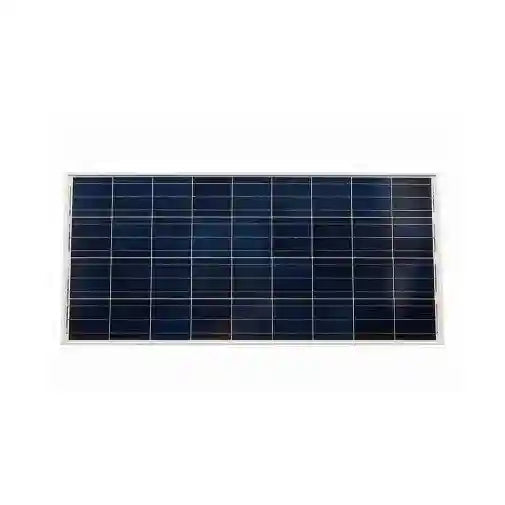

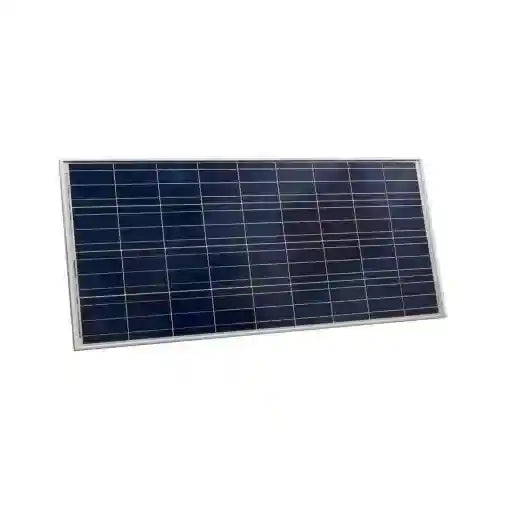

Victron 12v 175w Poly panneau solaire 1485mm x 668mm X30mm

Victron 12v 175w Poly panneau solaire 1485mm x 668mm X30mm

Catégorie : Panneaux solaires.

Victron 12V 175W Polycrystalline panneau solaire 1485mm x 668mm x 30mm Victron 12V 175W Polycrystalline panneau solaire Dimensions: 1485mm (L) x 668mm (W) x 30mm (H) • Series: 4A • Frame: Silver aluminium Features Low voltage temperature coefficient for better performance in high temperatures. Good low-light sensitivity for efficient energy capture throughout the day. 25-year limited warranty on power output and performance. 5-year limited warranty on materials and workmanship. Sealed waterproof junction box for enhanced safety and durability. Bypass diodes reduce power loss caused by shading on cells. Encapsulated with advanced EVA and triple-layer back sheet for safe high-voltage operation. Anodised aluminium frame suitable for standard roof montage systems. Pre-wired with PV-ST01 quick-connect connectors for easy installation. Tempered glass increases panel strength and impact resistance. Polycrystalline solar cells with 36 cells in series. Nominal power: 175W Open circuit voltage: 21.9V Maximum power voltage: 18.3V Short circuit current: 10.24A Maximum power current: 9.56A Operating temperature range: -40°C to +85°C Cable length and connector: 900mm with MC4 connector Power tolerance: ±3% Maximum system voltage: 1000V Weight: 12kg
