Sunman EArc Monocrystalline Flexible panneau solaire 175w Frameless ...

Sunman EArc Monocrystalline Flexible panneau solaire 175w Frameless ...

Catégorie : Panneaux solaires.

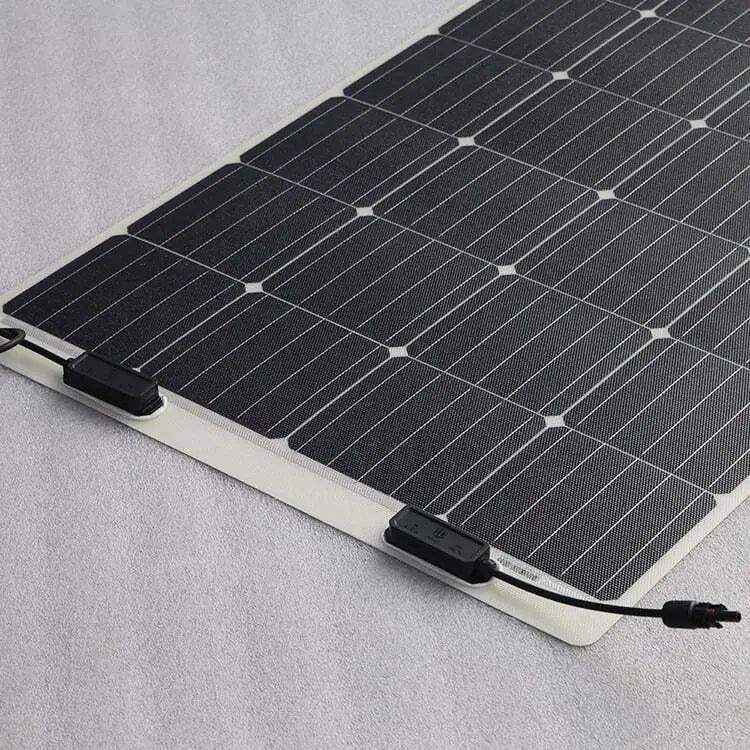

Sunman eArc Monocrystalline Flexible panneau solaire 175W Frameless Ultra-light - eArc weighs around 75% less than conventional PV panels. Panels measure just 2mm with a 100-watt panel weighing just 1.9kgs. Flexible - eArc combines a unique, patented material to produce a superior flexible crystalline-silicon/panel which can be installed on curved surfaces. Easy Installation - eArc can reduce installation costs through ease of handling and faster installation, without the added cost of montage hardware. Durability - eArc panels are certified to withstand maximum test load (2400 Pascal) and hail tested with 200g/35mm diameter ice stones at 39.5m per second. STC SMF185M-4X09U Maximum Power (P max ) 185 Maximum Power Voltage (V mp ) 19.9 Maximum Power Current (I mp ) 9.30 Open-circuit Voltage (V oc ) 24.1 Short-circuit Current (I sc ) 9.78 Module Efficiency (%) 17.9 Operating Temperature (℃) -40 ℃ to 85 ℃ Maximum System Voltage 600 V DC (IEC) Maximum Series Fuse Rating 20 A Application Class Class A Power Tolerance 0/+5 W Solar Cell Mono (6 inches) No. of Cells 36 (4×09) Module Dimensions 1520×680×2 mm Weight 3.3 kg Backsheet White J-box IP 68 rated (each j-box have one bypass diodes) Output Cables Photovoltaic technology cable 4.0 mm 2 , (+)150 / (-)450 mm Connector MC4 compatible SKU SNM.SMF175M-4X09U Model # SMF175M-4X09U Brand Sunman Shipping Weight 5.0000kg Shipping Width 1.600m Shipping Height 0.100m Shipping Length 0.700m Shipping Cubic 0.112000000m3 Unit Of Measure ea
