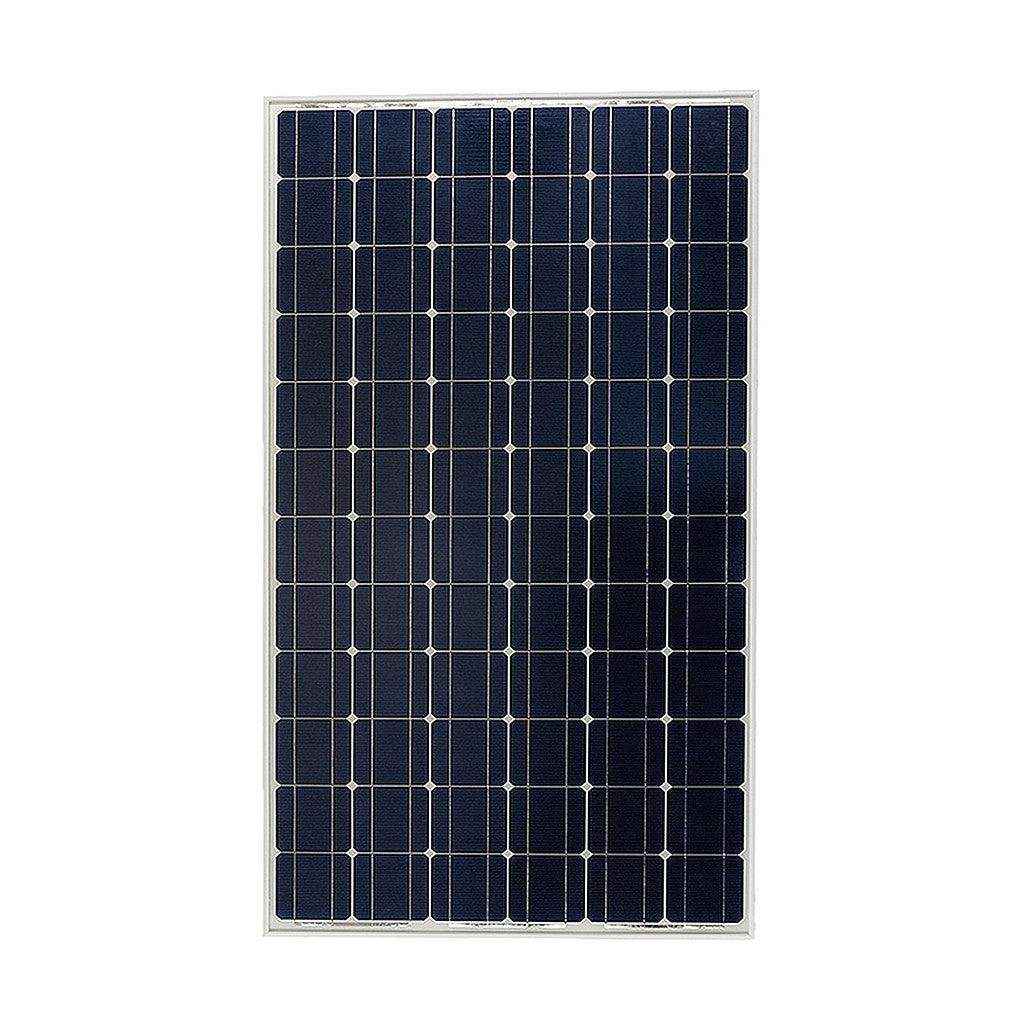

panneau solaire 305W-20V Mono 1658X1002x35mm Series 4B

panneau solaire 305W-20V Mono 1658X1002x35mm Series 4B

Catégorie : Panneaux solaires.

1658x1002x35MM • SERIES 4B • MONOCRYSTALLINE WITH SILVER FRAME • 5 YEAR WARRANTY Victron panneaux solaires are made using high quality Polycrystalline and Monocrystalline cells. Victron provide a full range of panneau solaire modules ranging from 20W - 360W. They are designed for charging deep cycle batteries, for example in vehicles and boats, motor homes, caravanes, camping, marine or any other systems with a 12V battery or battery bank. panneaux solaires can be utilised to extend battery run time when powering multiple accessories. A number of factors that can influence this include: the time of year, weather conditions, battery capacity and how long you run your appliances. It's important to over size your solar array (where space allows) so that on a good day your panneaux solaires will be able to fully charge your batteries and keep your loads running whilst free camping. Model SPM043052002 Cell type Monocrystalline Number of cells in series 60 Nominal power (Watts) 305 Open Circuit Voltage (Volts) 39.7 Maximum Power Voltage (Volts) 32.5 Short Circuit Current (Amps) 10.27 Maximum Power Current (Amps) 9.38 Power (Max.) 305W Temp Range -40 to +85°C Length of cable / connector 900mm / MC4 Power Tolerance ±3% Maximum system voltage 1000V Size (LxWxH) 1658 x 1002 x 35mm Weight 18kg Warranty - Electrical performance - Product warranty 10 years 90% +25 years 80% of power output 5 Year product Warranty
